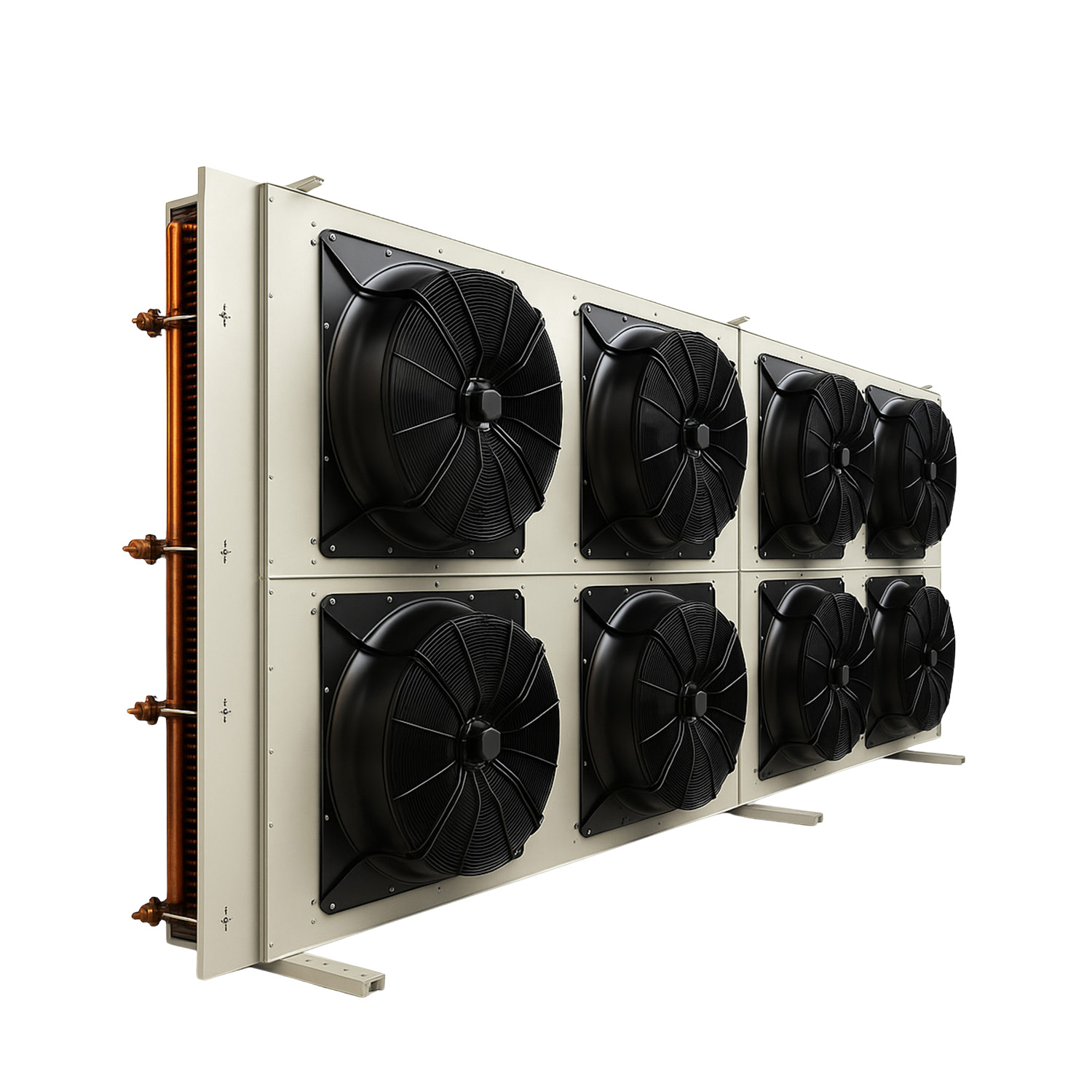

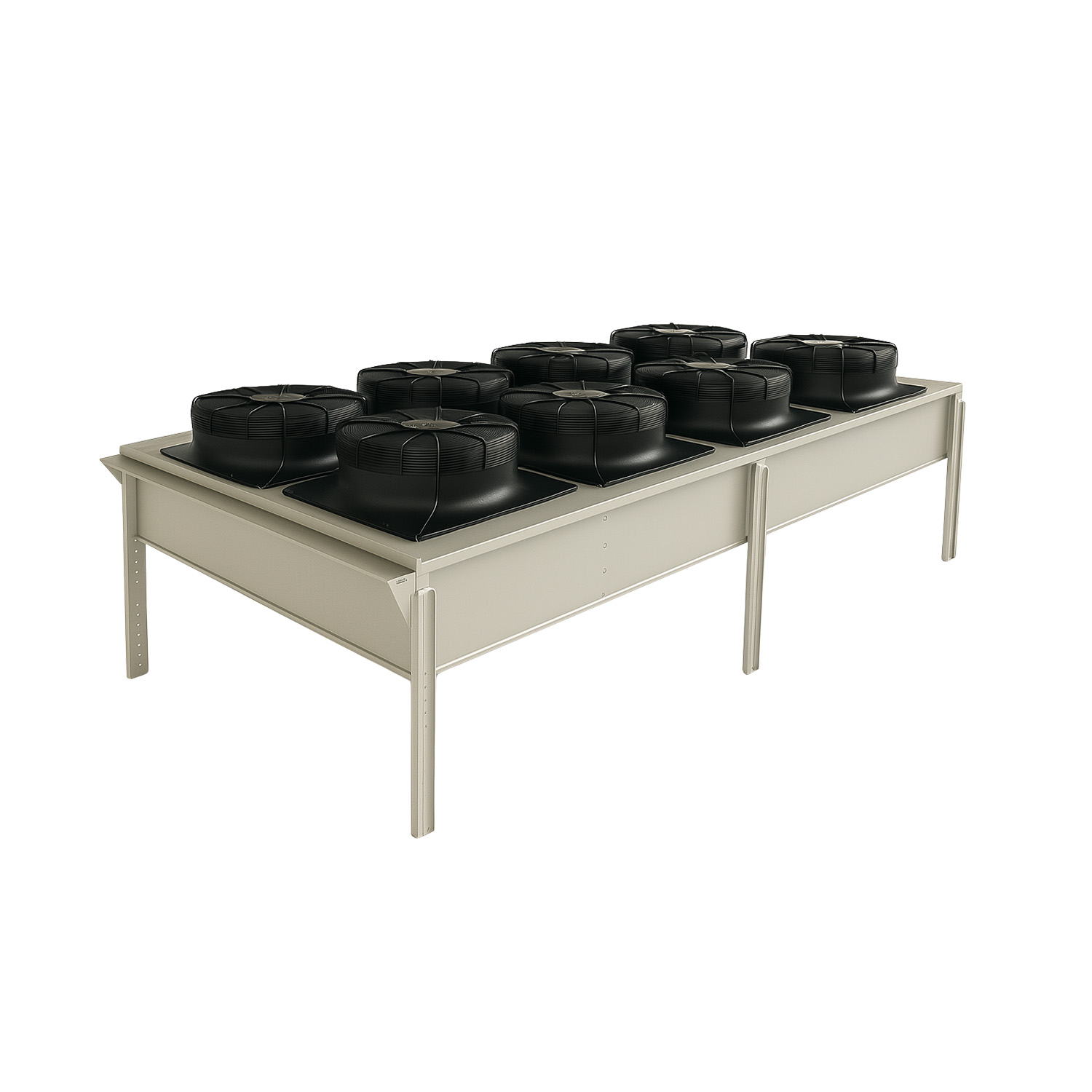

Horizontal & Vertical Type Condensers

Horizontal & Vertical Type Condensers
Horizontal & Vertical Type Condensers - Image 2

Horizontal & Vertical Type Condensers

Features & Applications

  • Friterm FCH / FCV series condensers are manufactured for outdoor installation and operation, without considering additional external pressure losses.
  • Fans are arranged as single row (1 to 4 fans) or double row (2 to 14 fans) configurations
  • Capacity range: 11 to 1428 kW
  • All models are suitable for both horizontal and vertical installation and airflow configurations
Coil Features
  • Staggered tube arrangement
  • Internally grooved copper tubes with aluminum fins, specifically designed for condenser applications
  • Fin spacing: 2.1 – 2.5 mm (other options available)
  • Designed for refrigerants such as R404A, R507, R134a, R407A, and R407C (capacities based on R404A)
  • Tube-to-tube sheet contact is prevented to ensure leak-free operation and long service life
  • Copper headers and inlet/outlet connections
  • Air vent / service valve on inlet header
  • Standard test pressure: 34 bar (PED 2014/68/EU compliant)
Casing
  • Robust structure allows installation on steel or concrete surfaces without additional support
  • Galvanized steel casing with epoxy-polyester electrostatic powder coating, providing  UV resistance and corrosion protection
  • Standard color: RAL 7044
  • Each fan section is separated by sheet metal partitions to prevent reverse rotation of idle fans
  • Lifting lugs and mounting feet are included in all models
Standard Accessories
  • Mounting legs
  • Cable tray
  • Service / access panels
Optional Accessories
  • Alternative fin spacing options
  • Different fin material options:
  • Epoxy-coated aluminum fins
  • Magnesium-alloy aluminum fins
  • Copper fins
  • Fully epoxy-coated coil
  • Stainless steel tubes
  • Stainless steel casing
  • Stainless steel headers
  • Exterior colour options
  • Adiabatic cooling system
  • Spray system over coil surface
  • Low and high-pressure direct spray systems
  • Power and control panel
  • Various fan speed control options:
  • Step control
  • Voltage control
  • Frequency control (VFD)
  • EC control
  • Vibration isolation mounts
  • Alternative connection configurations
  • Diffuser / air inlet grille
  • EC fans
  • Main terminal box
  • Remote communication protocol (MODBUS)
  • Safety guard / ladder
  • Extended mounting legs
  • Special fan and motor options for high ambient temperatures
  • UV-resistant safety switch
Fans High-efficiency axial fans (500 / 630 / 800 / 910 mm) from Ziehl-Abegg, ebm-papst or equivalents are used in suction configuration.
    • Standard fans (500 / 630 / 800 / 910 mm): 400V / 3Ph / 50 Hz, dual-speed
    • Speed-controlled EC fans are optional
    • Variable speed control can be achieved via frequency inverter and all-pole sine filter for external rotor motors
    • All motors are equipped with built-in thermistor protection
    • Motor protection class: IP54; insulation class: F
    • Operating temperature range: -40°C up to +50°C / +65°C (up to +75°C depending on fan type and conditions)
    • Special fan and motor options available for high ambient temperatures
    • Aerodynamically optimized fan blades for maximum airflow
    • Protective fan guards included as standard
    • Friterm reserves the right to use different fan brands; specifications may vary accordingly
