Condensing Units

Features & Applications

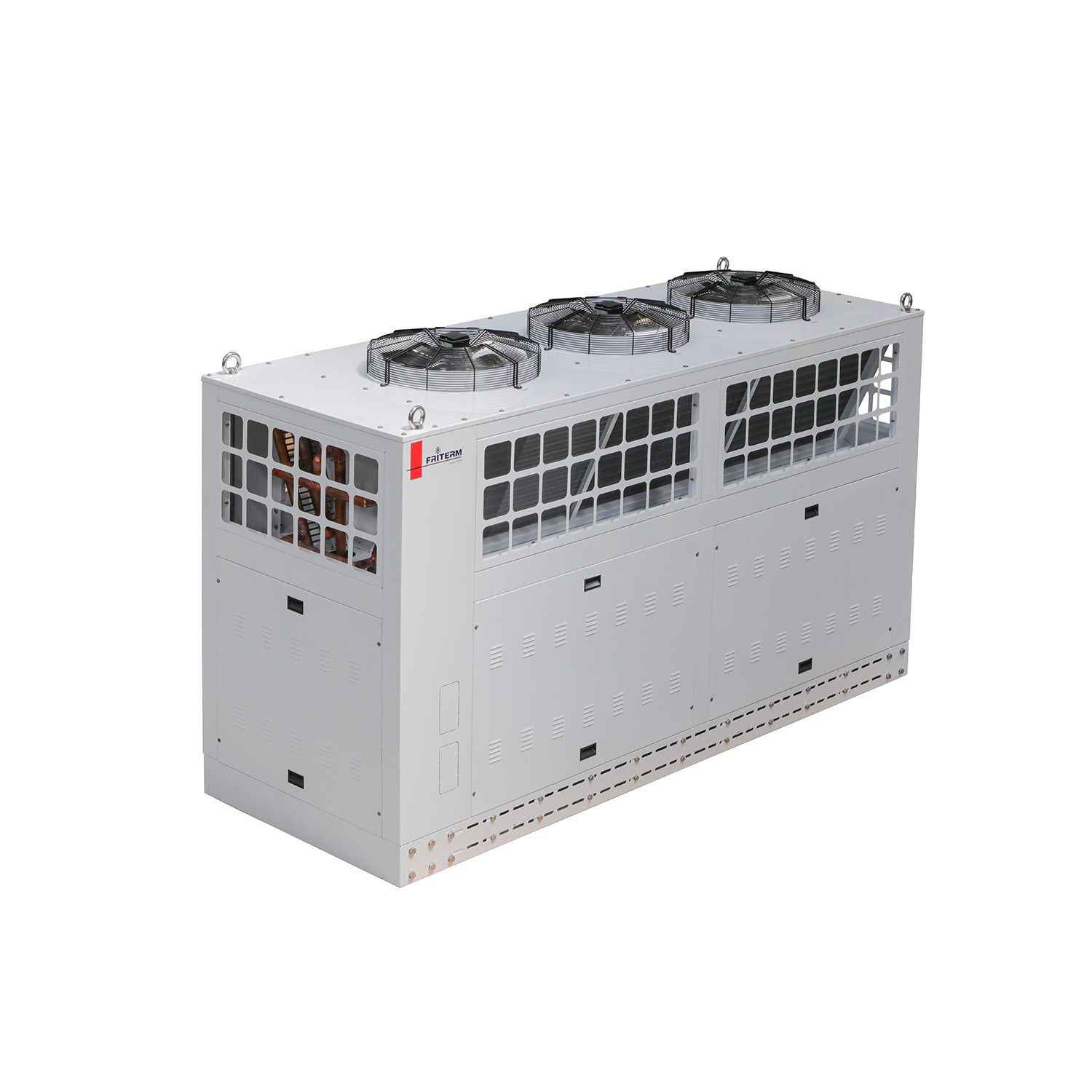

FRITERM Condensing Units (FRVC / FRWC) are next-generation products designed for outdoor installation, with the primary function of condensing the refrigerant from vapor phase into liquid phase.
The condensing unit can be used as part of an air conditioning system, refrigeration system, or heat pump application.
Friterm condensing units are equipped with high-efficiency heat exchangers tested in accordance with EN 327 standards and high-efficiency fans compliant with ERP 2015 regulations.
The unit structure consists of a high-performance coil made of internally grooved copper tubes, aluminum fins, and a casing constructed from magnesium-alloy aluminum materials.
For the casing, Magnelis® coated steel with epoxy-polyester आधारित electrostatic powder coating is used, providing excellent UV resistance and superior corrosion protection. The standard color is RAL 7044.
The unit construction is specifically designed to ensure optimal ventilation of the internal compartment where the base unit is installed.
A protective grille located at the top of the unit prevents large particles from entering and accumulating on the coil surface, thereby avoiding capacity loss.
The robust structure of the condensing unit allows installation on steel or concrete surfaces without the need for additional supporting .
For centralized control, the unit is equipped with a highly sealed automation control panel enclosure mounted on the side.
To maintain efficient operation, regular cleaning and maintenance of the condensing unit are required.
