Commercial Type Condensers

Features & Applications

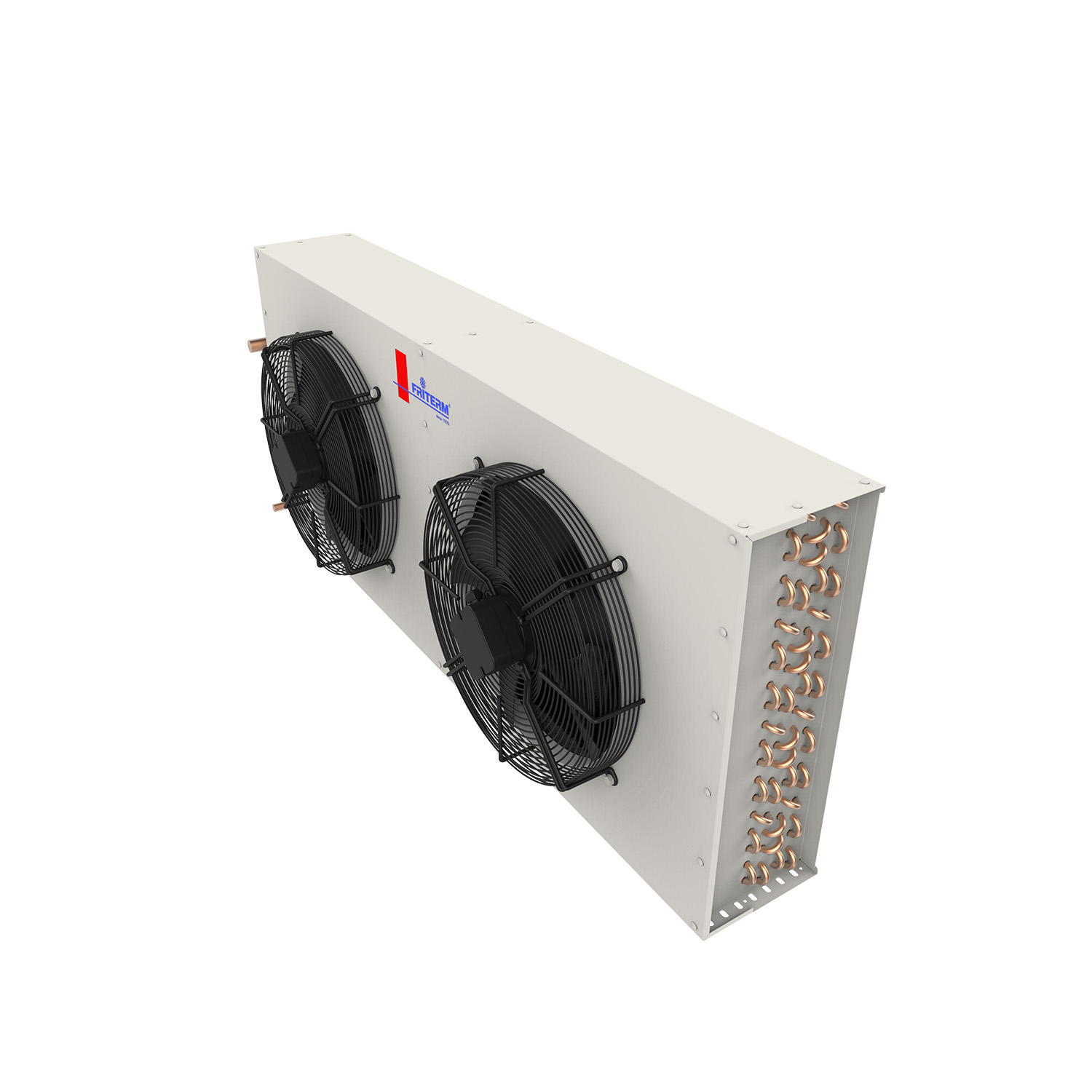

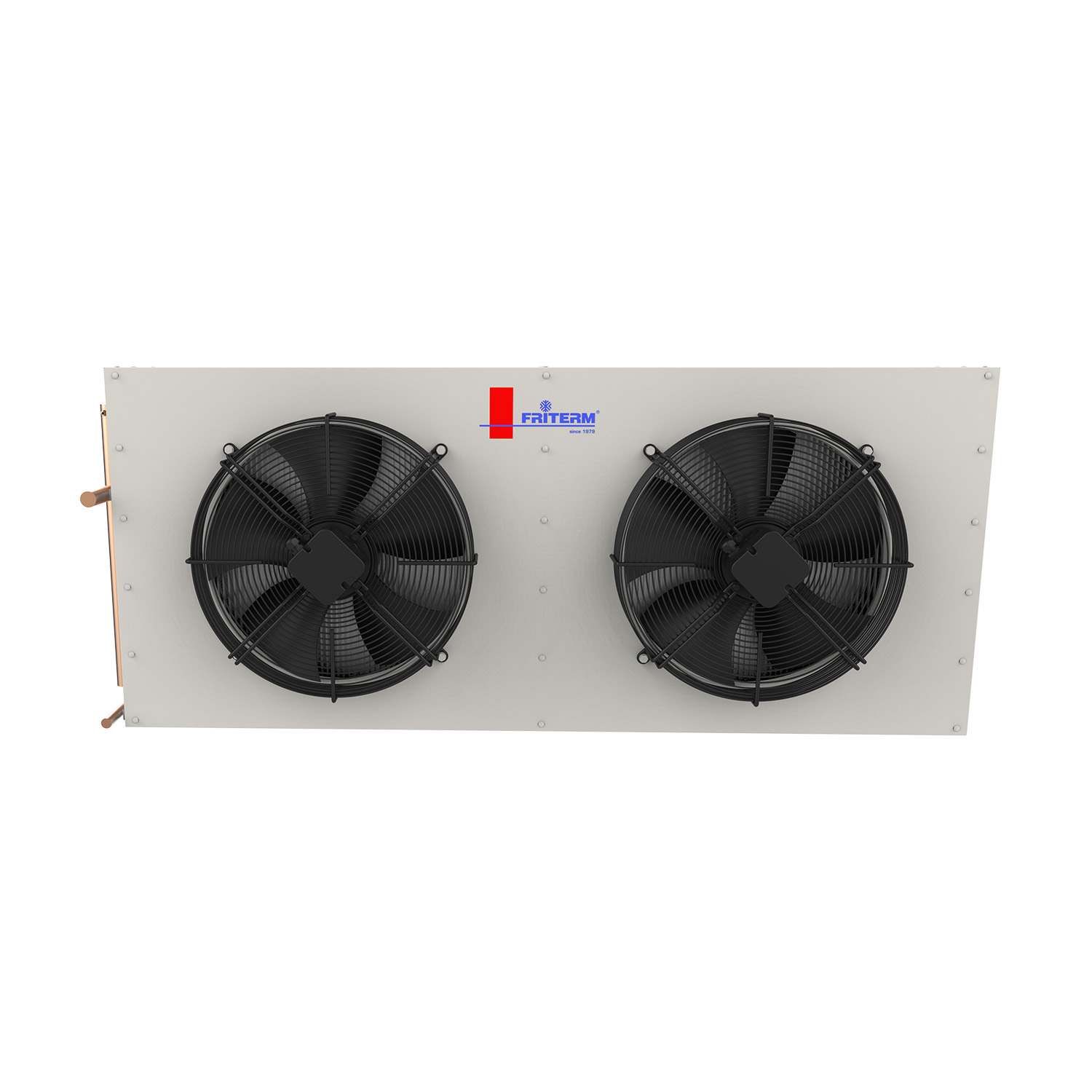

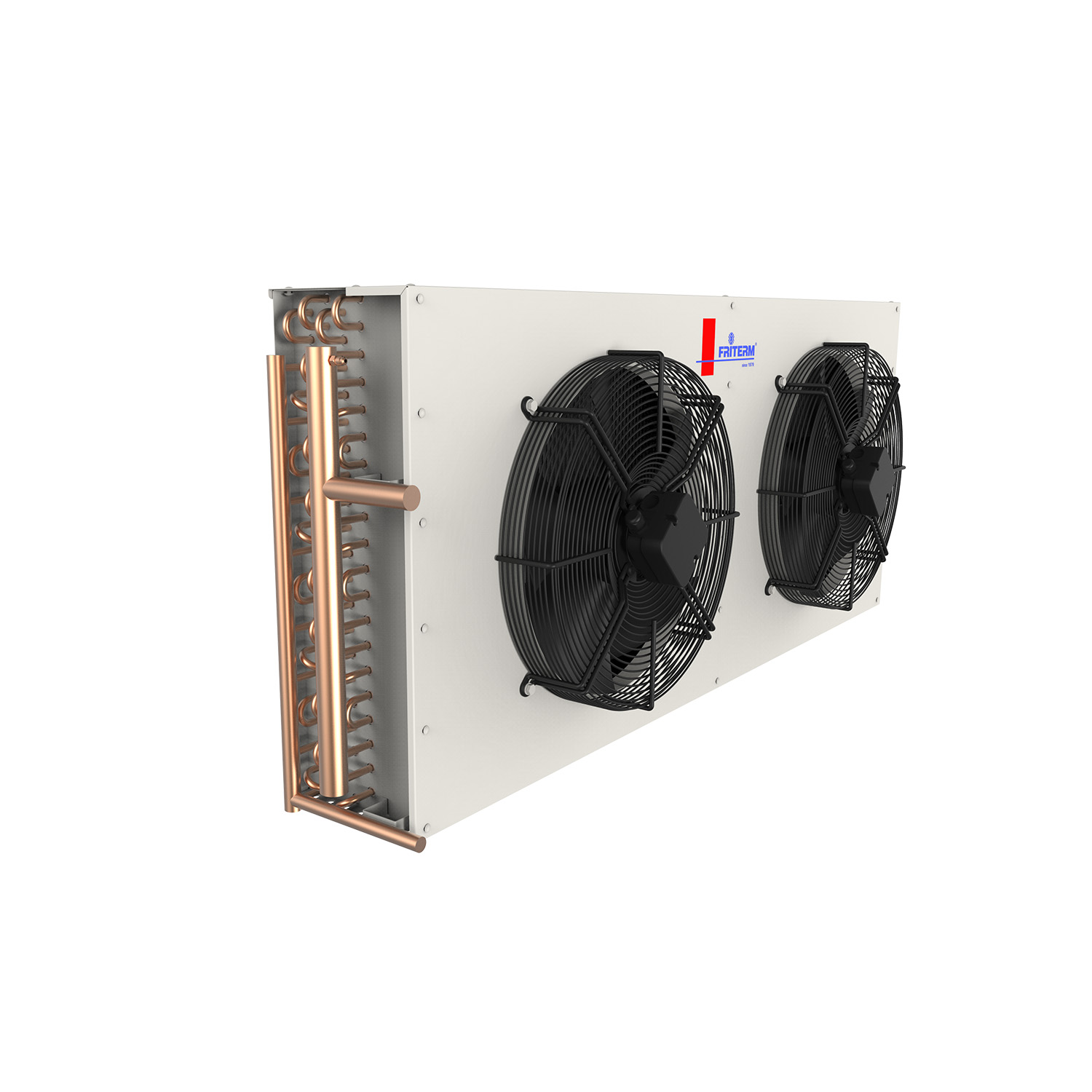

Friterm FCV 3T series axial fan condensers are manufactured for outdoor installation and operation without considering additional external pressure losses.

Fans are arranged in a single row configuration from 1 to 3 fans.
Capacity range: 6.3 to 69 kW

Coil Features

Staggered tube arrangement
Internally grooved copper tubes with aluminum fins, specifically designed for condenser applications
Fin spacing: 2.3 mm (other fin spacing options available)
Compatible with refrigerants such as R404A, R507, R134a, R407A, and R407C (capacities based on R404A)
Copper headers and inlet/outlet connections
Air vent / service valve on inlet header
Standard test pressure: 34 bar (PED 2014/68/EU compliant)

Casing

Robust condenser housing suitable for installation on steel or concrete surfaces without additional mounting accessories
Galvanized steel casing with epoxy-polyester electrostatic powder coating, providing excellent UV resistance and corrosion protection
Standard color: RAL 7044
Each fan section is separated by sheet metal partitions to prevent reverse rotation of idle fans

Optional Accessories

Alternative fin spacing options
Alternative fin material options
Epoxy-coated aluminum fins
Magnesium-alloy aluminum fins
Copper fins
Fully epoxy-coated coil
Stainless steel casing
External casing color options
Alternative connection configurations
EC fans
Special fan and motor options suitable for high ambient operating temperatures
UV-resistant safety switch

Fans

High-efficiency axial fans with diameters of 350 / 400 / 450 / 500 mm from ebm-papst, Ziehl-Abegg or equivalents are used in suction airflow configuration.
350 / 400 / 450 mm fans: 230V / 1Ph / 50 Hz, dual-speed
500 mm fans: 400V / 3Ph / 50 Hz, dual-speed
EC fans with speed control are optionally available
Variable speed control can be achieved using frequency inverter and all-pole sine filter (for three-phase fans)
Protective fan guards are standard
All motors are equipped with internal thermistor protection
Motor protection class: IP44 / IP54
Insulation class: B / F
Operating temperature range: -25°C up to +50°C / +65°C
Depending on fan type and operating conditions, designs up to +75°C are possible for standard fans
Special fan and motor options are available for high-temperature applications
Fan blades are aerodynamically optimized for maximum airflow
Friterm reserves the right to use different fan brands; specifications may vary accordingly
